Intel Pentium III 800 - RB80526PZ800256 (BX80526C800256E)笔记本cpu

一般信息

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium III

型号

800EB

CPU部件号

RB80526PZ800256 is an OEM/tray microprocessor
BX80526C800256E is a boxed microprocessor

频率

800 MHz

总线速度

133 MHz

时钟倍频器

封装

370-pin Flip-Chip Pin Grid Array (FC-PGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)

接口

接口 370 / PGA370

发布时间

Dec 20, 1999

指导价格

$851

S规格号

部件号	ES/QS处理器
	QN23	QP15	QS22	QS81
BX80526C800256E
RB80526PZ800256	+	+	+	+

部件号	生产处理器
	SL3VE	SL3WB	SL3Y2	SL4CD	SL4MB	SL52P
BX80526C800256E	+			+	+	+
RB80526PZ800256		+	+	+		+

架构 / 微体系结构

微体系结构

处理器内核

Coppermine

核心步进

cA2 (QN23, SL3VE, SL3WB)
cB0 (QP15, QS22, QS81, SL3Y2)
cC0 (SL4CD, SL4MB)
cD0 (SL52P)

CPUIDs

681 (SL3VE, SL3WB)
683 (QP15, QS22, SL3Y2)
686 (SL4CD, SL4MB)
68A (SL52P)

制造工艺

0.18 micron
28 million transistors

模具尺寸

104.6mm² (CPUID 0683h)
90mm² (CPUID 0686h)
94.7mm² (CPUID 068Ah)

数据位宽

32 bit

Data bus width

64 bit

CPU核心数

线程数

浮点单元

Integrated

1级缓存大小

16 KB 4-way set associative instruction cache
16 KB 4-way set associative data cache

2级缓存大小

Full-speed integrated 8-way set associative 256 KB

多重处理

Up to 2 processors

特征

MMX instructions
SSE / Streaming SIMD Extensions

低功耗特性

AutoHALT state
Stop Grant state
Sleep state
Deep Sleep state
System Management Mode

电/热参数

Min/Recommended/Max V核

1.57V / 1.65V / 1.69V
1.62V / 1.7V / 1.74V
1.67V / 1.75V / 1.79V

最小/最大工作温度

0°C - 80°C

Maximum power dissipation

27.2 Watt (1.7V核)
29.05 Watt (1.75V核)

热设计功耗

20.8 Watt (CPUID 0686h)
24.5 Watt (CPUID 068Ah)

Notes on Intel Pentium III 800EB (接口 370)

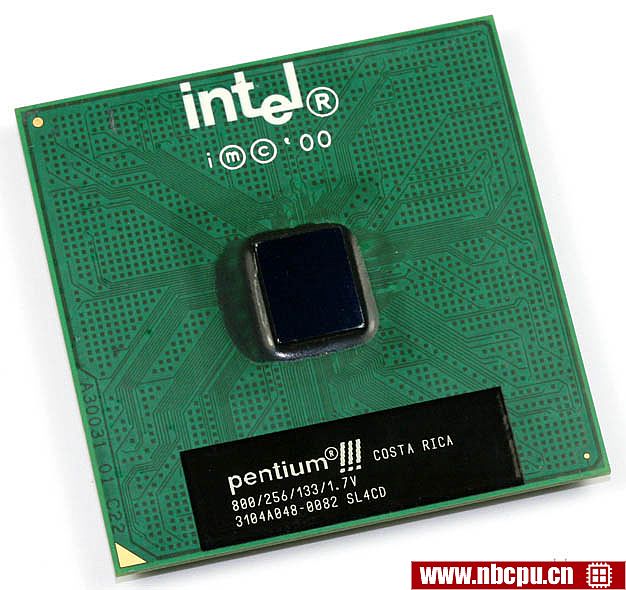

The processor is usually marked as 800EB/256/133/1.65V, 800EB/256/133/1.7V or 800EB/256/133/1.75V, where the last number specifies processor's core voltage. If the processor is marked with RB80526PZ800256 编号 then use processor specification number to identify processor's core voltage
Stepping cA2 CPUs for 接口 370 were not validated for dual-processing
