Intel Pentium III 1000 - RB80526PZ001256 (BX80526C1000256)笔记本cpu

一般信息

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium III

型号

1BGHz

CPU部件号

RB80526PZ001256 is an OEM/tray microprocessor
BX80526C1000256 is a boxed microprocessor

频率

1000 MHz

总线速度

133 MHz

时钟倍频器

7.5

封装

370-pin Flip-Chip Pin Grid Array (FC-PGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)

接口

接口 370 / PGA370

发布时间

Mar 8, 2000

指导价格

$990

S规格号

部件号	ES/QS处理器					生产处理器
	QAN1	QAT7	QAZ1	QEJ0	QX93	SL4C8	SL4F9	SL4MF
BX80526C1000256						+		+
RB80526PZ001256	+	+	+	+	+	+		+
Unknown							+

部件号	生产处理器
	SL4WM	SL52R	SL5B3	SL5DV	SL5FQ
BX80526C1000256		+	+	+	+
RB80526PZ001256	+	+		+
Unknown

架构 / 微体系结构

微体系结构

处理器内核

Coppermine

核心步进

C0 (QAN1)
cC0 (QAT7, SL4C8, SL4MF, SL4WM)
cD0 (QAZ1, QEJ0, SL52R, SL5B3, SL5DV, SL5FQ)

CPUIDs

686 (SL4C8, SL4MF, SL4WM)
68A (QAZ1, QEJ0, SL52R, SL5B3, SL5DV, SL5FQ)

制造工艺

0.18 micron
28 million transistors

模具尺寸

90mm² (CPUID 0686h)
94.7mm² (CPUID 068Ah)

数据位宽

32 bit

Data bus width

64 bit

CPU核心数

线程数

浮点单元

Integrated

1级缓存大小

16 KB 4-way set associative instruction cache
16 KB 4-way set associative data cache

2级缓存大小

Full-speed integrated 8-way set associative 256 KB

多重处理

Up to 2 processors

特征

MMX instructions
SSE / Streaming SIMD Extensions

低功耗特性

AutoHALT state
Stop Grant state
Sleep state
Deep Sleep state
System Management Mode

电/热参数

Min/Recommended/Max V核

1.62V / 1.7V / 1.74V
1.67V / 1.75V / 1.79V
1.76V / 1.76V / 1.86V

最小/最大工作温度

0°C - 70°C (1.7V and 1.76V核)
75°C (1.75V核)

Maximum power dissipation

32.98 Watt (1.7V核)
35.35 Watt (1.75V核)

热设计功耗

29.6 Watt (1.76V)
26.1 Watt (CPUID 0686h)
29 Watt (CPUID 068Ah)

Notes on Intel Pentium III 1BGHz (接口 370)

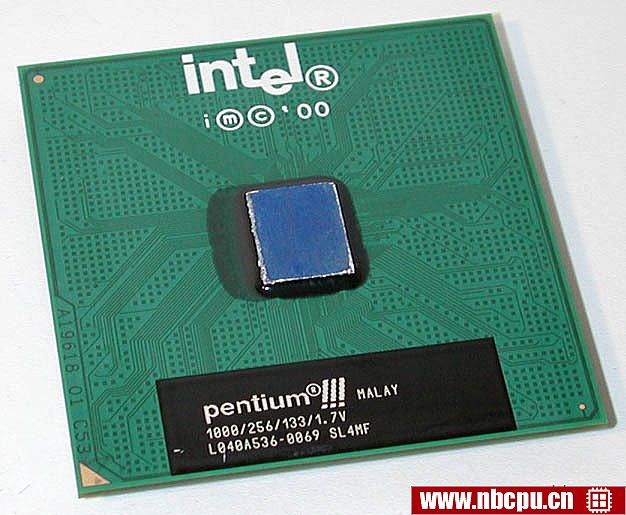

The processor is usually marked as 1000/256/133/1.7V, 1000/256/133/1.75V or 1000/256/133/1.76V, where the last number specifies processor's core voltage. If the processor is marked with RB80526PZ001256 编号 then use processor specification number to identify processor's core voltage
This part is usually referred to as 1B GHz or 1.0B GHz CPU
