Intel Pentium III 800 - 80526PZ800256 / KC80526PZ800256 (BX80526U800256)笔记本cpu

一般信息

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium III

型号

800EB

CPU部件号

80526PZ800256 is an OEM/tray microprocessor
KC80526PZ800256 is an OEM/tray microprocessor
BX80526U800256 is a boxed microprocessor
BX80526U800256E is a boxed microprocessor

频率

800 MHz

总线速度

133 MHz

时钟倍频器

封装

Single Edge Contact Cartridge 2 (SECC2)

接口

Slot 1 / SC242

发布时间

Dec 20, 1999

指导价格

$851

S规格号

部件号	ES/QS处理器
	QH33	QN15	QU07
80526PZ800256	+	+	+
BX80526U800256
BX80526U800256E
KC80526PZ800256

部件号	生产处理器
	SL3V8	SL3WA	SL3XQ	SL458	SL4BX	SL4G7	SL4KG
80526PZ800256					+
BX80526U800256	+						+
BX80526U800256E	+			+		+
KC80526PZ800256		+	+		+

架构 / 微体系结构

微体系结构

处理器内核

Coppermine

核心步进

cA2 (QN15, SL3WA)
cB0 (QH33, QU07, SL3XQ, SL458)
cC0 (SL4BX, SL4KG)

CPUIDs

681 (SL3V8, SL3WA)
683 (QH33, QU07, SL3XQ, SL458)
686 (SL4BX, SL4KG)

制造工艺

0.18 micron
28 million transistors

数据位宽

32 bit

Data bus width

64 bit

CPU核心数

线程数

浮点单元

Integrated

1级缓存大小

16 KB instruction cache
16 KB data cache

2级缓存大小

Full-speed on-die 256 KB

多重处理

Up to 2 processors

特征

MMX instructions
SSE / Streaming SIMD Extensions

低功耗特性

AutoHALT state
Stop Grant state
Sleep state
Deep Sleep state
System Management Mode

电/热参数

Min/Recommended/Max V核

1.57V / 1.65V / 1.69V
1.62V / 1.7V / 1.74V

最小/最大工作温度

0°C - 80°C

最小/最大功耗

4.23 Watt (Stop Grant mode) / 26.4 Watt (1.65V核)
4.35 Watt (Stop Grant mode) / 27.2 Watt (1.7V核)

Notes on Intel Pentium III 800EB (Slot 1)

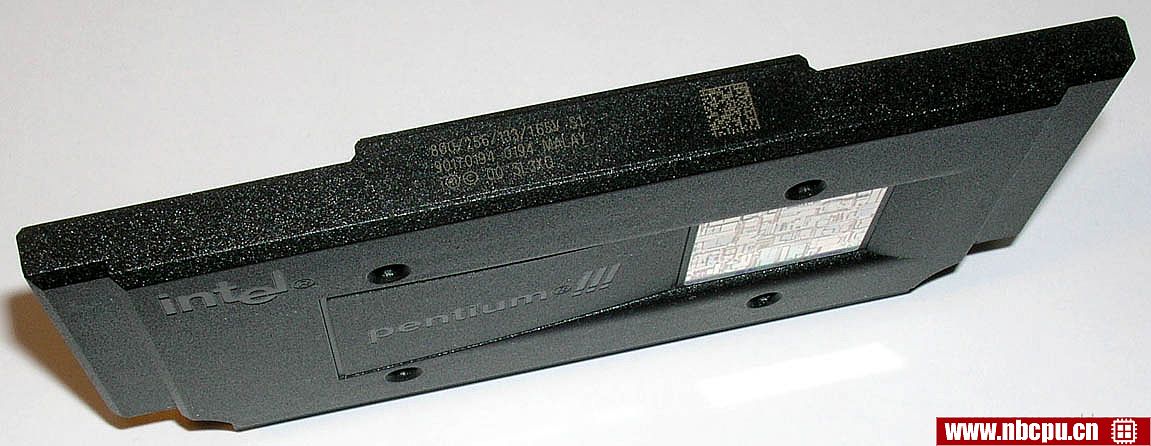

The processor is usually marked as 800EB/256/133/1.65V S1 or 800EB/256/133/1.7V S1, where the last number specifies processor's core voltage. If the processor is marked with 80526PZ800256 编号 then use processor specification number to identify processor's core voltage
