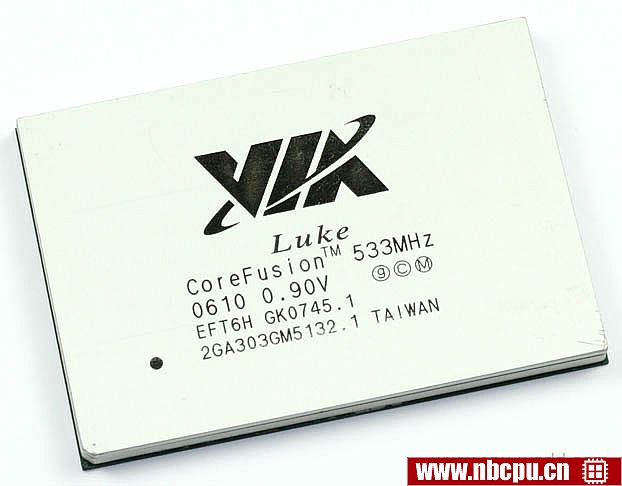

VIA Luke CoreFusion 533MHz笔记本cpu

类型	Highly Integrated microprocessor
系列	VIA Luke CoreFusion
HICPU 编号	Luke CoreFusion 533MHz is an OEM/tray HICPU
频率	533 MHz
总线速度	133 MHz
时钟倍频器	4
封装	841-ball Ball Grid Array with Heat Spreader (HSBGA) 2.09" x 1.46" (5.3 cm x 3.7 cm)
接口	BGA841
发布时间	Mar 8, 2005
架构 / 微体系结构
处理器内核	Nehemiah
制造工艺	0.13 micron
1级缓存大小	64 KB 2-way set associative instruction cache 64 KB 2-way set associative data cache
2级缓存大小	64 KB exclusive 16-way set associative cache
特征	MMX instructions 3DNow! technology SSE / Streaming SIMD Extensions AES encryption Random Number Generator
低功耗特性	Standby state Suspend state PowerSaver 1.0
集成外设/组件
集成显卡	GPU 类型: S3 Graphics UniChrome Pro
Other peripherals	VIA CN400 north bridge Ultra V-Link interface
电/热参数
V核	0.9V
Maximum operating temperature	85°C
热设计功耗	6 Watt
Notes on VIA Luke CoreFusion 533 MHz
The processor supports DDR 266/333/400 memory The CPU can be used with VT8235M, VIA VT8237R Plus (includes SATA support) and VT8251 (includes PCI-E support) south bridge chipsets

类别:SoC	制造商:VIA
家族:Luke CoreFusion	产品:VIA Luke CoreFusion 533MHz
