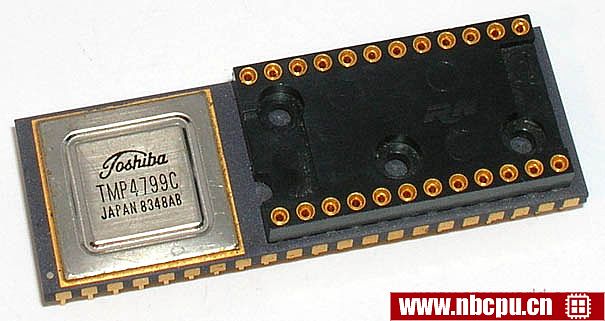

Toshiba TMP4799C笔记本cpu

类型	Microcontroller
频率	0.4 MHz - 4.2 MHz
封装	42-pin ceramic DIP with piggyback EPROM 24-pin socket
架构 / 微体系结构
制造工艺	N-channel silicon gate depression load
数据位宽	4 bit
Physical memory	4 KB ROM memory 128 bytes data memory
低功耗特性	Memory standby mode
On-chip peripherals	35 I/O lines Two 12-bit timer/counter Clock generator Serial port with 4-bit buffer 18-stage divider
On-chip RAM	256 x 4 bit
On-chip ROM	External 4096 x 4 bit
电/热参数
V核	5V ± 10%
最小/最大工作温度	-30°C - 70°C
Minimum/Typical/Maximum power dissipation	0.04 Watt (Memory standby mode) / 0.35 Watt / 0.83 Watt
Notes on Toshiba TMP4799C
Supports Intel 2732 EPROM type Up to 500,000 instructions/second

类别:MCU	制造商:Toshiba
家族:TLCS-47	产品:Toshiba TMP4799C
