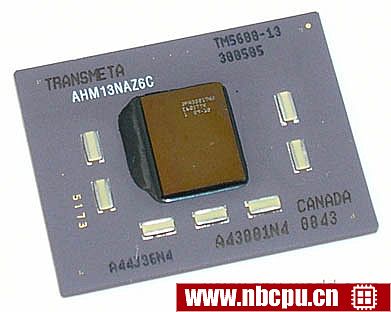

Transmeta TM5600-13笔记本cpu

类型	CPU / Microprocessor
系列	Transmeta TM5600
CPU 编号	TM5600-13 is an OEM/tray microprocessor
频率	533 MHz
总线速度	133 MHz
时钟倍频器	4
封装	474-ball ceramic BGA 1.28" x 0.98" (3.25 cm x 2.5 cm)
接口	BGA474
架构 / 微体系结构
制造工艺	0.18 micron
浮点单元	Integrated
1级缓存大小	64 KB on-die 8-way set associative instruction cache 64 KB on-die 16-way set associative data cache
2级缓存大小	512 KB write-back 4-way set associative
Pipeline	7 stage integer pipeline 10-stage FP pipeline
低功耗特性	LongRun advanced power management Auto Halt Quick Start Deep Sleep
On-chip peripherals	PCI 2.1 compliant PCI bus controller 64-bit SDR RAM memory controller 64-bit DDR RAM memory controller
电/热参数
V核	1.6V, 5%V (533 MHz) 1.2V, 5%V (300 MHz)
V I/O or secondary	3.3VV (3.135V - 3.465V)
V tertiary	2.5VV (2.375V - 2.625V)
最小/最大工作温度	0°C - 85°C
Minimum/Typical/Maximum power dissipation	0.1 Watt (Seep Sleep mode) / 0.7 Watt / 8.25 Watt
Notes on Transmeta TM5600-13
Requires Transmeta's x86 Code Morphing software to run x86 code Values for bus frequency and clock multiplier are provided for normal operation. If LongRun is enabled the bus frequency and clock multiplier may be adjusted to match processor speed.

类别:CPU	制造商:Transmeta
家族:TM5600	产品:Transmeta TM5600-13
