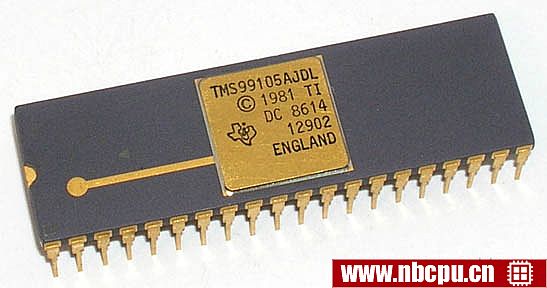

Texas Instruments TMS99105AJDL笔记本cpu

类型	CPU / Microprocessor
频率	24 MHz (external clock) 6 MHz (internal)
封装	40-pin ceramic side-brazed DIP
接口	DIP40
尺寸	2.02" x 0.6" / 5.13cm x 1.52cm
发布时间	1981
指导价格	$65
架构 / 微体系结构
制造工艺	N-channel silicon-gate SMOS technology
数据位宽	16 bit
Physical memory	64 KB 128 KB when instruction and data memory are separated
On-chip peripherals	On-chip clock generator
On-chip RAM	32 bytes Macrostore memory
电/热参数
V核	5V ± 5%
最小/最大工作温度	0°C - 70°C
Average CPU Power	0.63 Watt
热设计功耗	1 Watt
Notes on Texas Instruments TMS99105AJDL
Object-code compatible with TMS9900 and TMS9995 microprocessors

类别:CPU	制造商:Texas Instruments
家族:TMS99105	产品:Texas Instruments TMS99105AJDL
