Texas Instruments TMS9980AJDL基本资料
类别:CPU 制造商:Texas Instruments
家族:TMS9980 产品:Texas Instruments TMS9980AJDL
类型 CPU / Microprocessor
频率    10 MHz (external clock)
2.5 MHz (internal)
封装 40-pin side-brazed ceramic DIP
接口 DIP40
架构 / 微体系结构
制造工艺 N-channel silicon-gate technology
数据位宽 16 bit
Data bus width 8 bit
Physical memory 16 KB
电/热参数
V核    -5V ± 5%
V I/O or secondary 5V ± 5%
V tertiary 12V ± 5%
最小/最大工作温度    0°C - 70°C
Typical/Maximum power dissipation 1.09 Watt / 1.33 Watt
Notes on Texas Instruments TMS9980AJDL
  • Object-code compatible with TMS9900 family
  • Minimum external clock frequency is 6 MHz

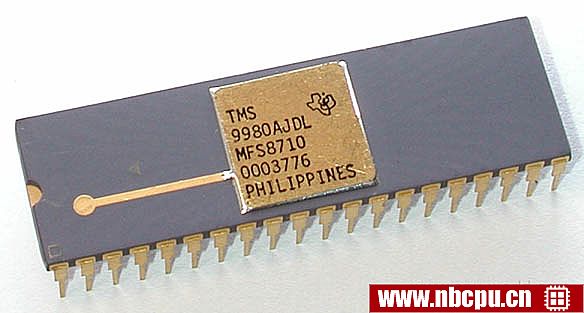

Texas Instruments TMS9980AJDL图片资料
Texas Instruments TMS9980AJDL
