Fujitsu MBL8088-C / MBL8088 (ceramic)基本资料
类别:CPU 制造商:AMD
家族:8088 产品:Fujitsu MBL8088-C / MBL8088 (ceramic)
一般信息
类型 CPU / Microprocessor
系列 Fujitsu 8088
CPU部件号
  • MBL8088 is a 编号 marked on the chip
  • MBL8088-C is an order number
频率    5 MHz
封装 40-pin ceramic DIP
接口 DIP40
尺寸 2" x 0.59" / 5.08cm x 1.51cm
架构 / 微体系结构
制造工艺 N-channel, depletion load, silicon gate technology
数据位宽 16 bit
Data bus width 8 bit
Physical memory 1 MB
电/热参数
V核    5V ± 10%
最小/最大工作温度    0°C - 70°C
Maximum power dissipation    1.87 Watt
Notes on Fujitsu MBL8088-C
  • Minimum operating frequency is 2 MHz

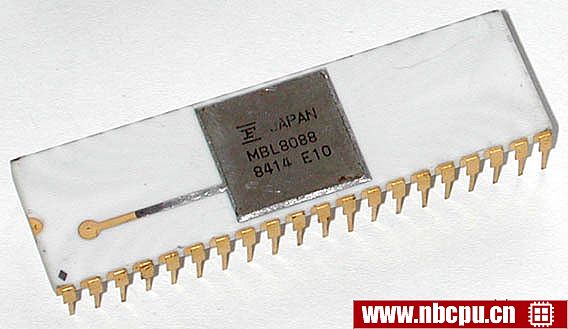

Fujitsu MBL8088-C / MBL8088 (ceramic)图片资料
Fujitsu MBL8088-C / MBL8088 (ceramic)
