Fujitsu MBL8088-P / MBL8088 (plastic)笔记本cpu

位置：首页 > 制造商：AMD > 家族：8088 > 产品：Fujitsu MBL8088-C / MBL8088 (ceramic) > Fujitsu MBL8088-P / MBL8088 (plastic) > 详细资料

Fujitsu MBL8088-P / MBL8088 (plastic)基本资料

类别:CPU	制造商:AMD
家族:8088	产品:Fujitsu MBL8088-C / MBL8088 (ceramic)

一般信息
类型	CPU / Microprocessor
系列	Fujitsu 8088
CPU部件号	MBL8088 is a 编号 marked on the chip MBL8088-P is an order number
频率	* MHz
封装	40-pin plastic DIP
接口	DIP40
尺寸	2.0" x 0.4" / *.23cm x 1.38cm
架构 / 微体系结构
制造工艺	N-channel, depletion load, silicon gate technology
数据位宽	*1 bit**
Data bus width	8 bit
Physical memory	1 MB
电/热参数
V核	*V ± 10%
最小/最大工作温度	0°C - *0°C
Maximum power dissipation	1.8* Watt
Notes on Fujitsu MBL8088-P
Minimum operating frequency is 2 MHz

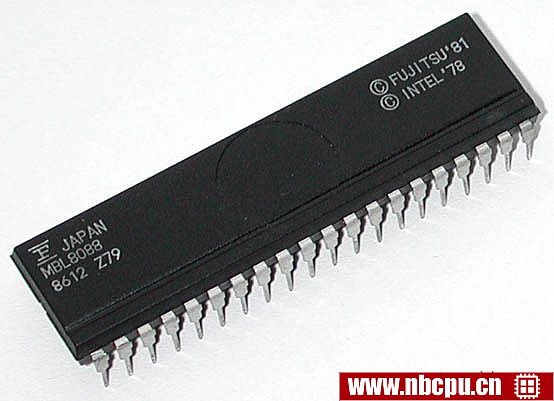

Fujitsu MBL8088-P / MBL8088 (plastic)图片资料
