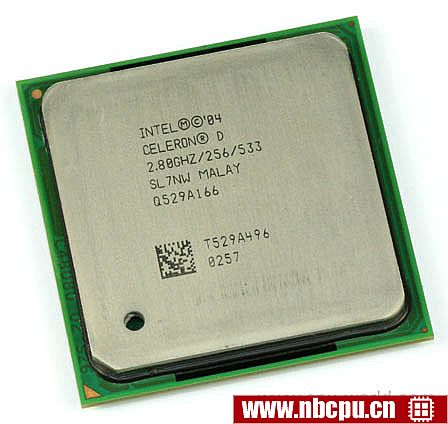

Intel Celeron D 335 - RK80546RE072256 / NE80546RE072256 (BX80546RE2800C)笔记本cpu

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Celeron D

型号

335

CPU部件号

RK80546RE072256 is an OEM/tray microprocessor
NE80546RE072256 is an OEM/tray microprocessor
B80546RE072256 is an OEM/tray microprocessor
BX80546RE2800C is a boxed microprocessor

频率

2800 MHz

总线速度

533 MHz

时钟倍频器

封装

478-pin Flip-Chip Pin Grid Array (FC-PGA2) package
1.38" x 1.38" (3.5 cm x 3.5 cm)

接口

接口 478 / mPGA478B

发布时间

Jun 24, 2004

指导价格

$117

S规格号

	ES/QS处理器
部件号	Q611	QM11
B80546RE072256
BX80546RE2800C
NE80546RE072256
RK80546RE072256	+	+

	生产处理器
部件号	SL7C7	SL7DM	SL7L2	SL7NW	SL7TJ	SL7VZ	SL8HM
B80546RE072256			+			+
BX80546RE2800C	+	+	+	+	+	+	+
NE80546RE072256							+
RK80546RE072256	+	+		+			+

架构 / 微体系结构

微体系结构

Netburst

处理器内核

Prescott-256

核心步进

C0 (Q611, SL7C7, SL7TJ)
D0 (QM11, SL7DM, SL7L2)
E0 (SL7NW, SL7VZ)
G1 (SL8HM)

CPUIDs

F33 (Q611, SL7C7, SL7TJ)
F34 (QM11, SL7DM, SL7L2)
F41 (SL7NW, SL7VZ)
F49 (SL8HM)

制造工艺

0.09 micron

数据位宽

32 bit

The number of cores

线程数

浮点单元

Integrated

1级缓存大小

16 KB data cache

2级缓存大小

256 KB 4-way set associative cache

特征

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3

低功耗特性

AutoHALT state
Stop Grant state
Sleep state

集成外设/组件

集成显卡

None

电/热参数

V核

1.25V - 1.4V

最小/最大工作温度

5°C - 67°C

Maximum power dissipation

94.46 Watt

热设计功耗

73 Watt

Notes on Intel Celeron D 335

Bus frequency is 133 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 533 MHz
The part NE80546RE072256 is RoHS compliant with exemption
The part NE80546RE072256 was also offered as an embedded processor
