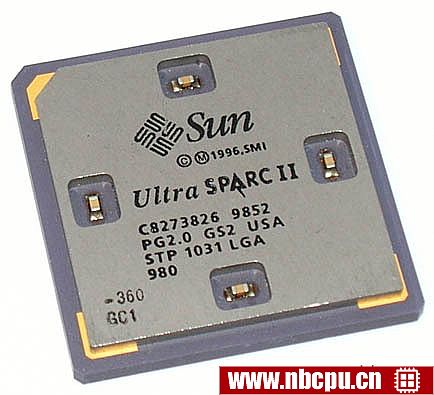

Sun Microsystems STP1031LGA 360 MHz笔记本cpu

一般信息
类型	CPU / Microprocessor
细分市场	Server
系列	Sun Microsystems UltraSparc II
CPU 编号	STP1031LGA 360 is an OEM/tray microprocessor
频率	360 MHz
时钟倍频器	2, 3 or 4
封装	787-land ceramic LGA
尺寸	1.22" x 1.22" / 3.1cm x 3.1cm
发布时间	May 5, 1998
架构 / 微体系结构
制造工艺	0.35 micron 5-layer metal CMOS technology 5.4 million transistors
模具尺寸	156.25mm² (12.5mm x 12.5mm)
数据位宽	64 bit
浮点单元	Integrated
1级缓存大小	16 KB pseudo 2-way set associative code cache 16 KB write-through direct-mapped data cache
多重处理	Up to 4 processors
特征	Visual Instruction Set
On-chip peripherals	Memory Management Unit Level 2 cache controller
电/热参数
V I/O or secondary	3.3V
Notes on Sun Microsystems UltraSparc II 360 MHz
Pin-compatible with UltraSparc I module L2 cache controller supports from 512KB to 16MB of external cache memory Depending on the type of external memory used, the secondary cache runs either at the CPU frequency, or half the CPU frequency The processor supports up to 64-way systems

类别:CPU	制造商:Sun Microsystems
家族:UltraSparc II	产品:Sun Microsystems STP1031LGA 360 MHz
