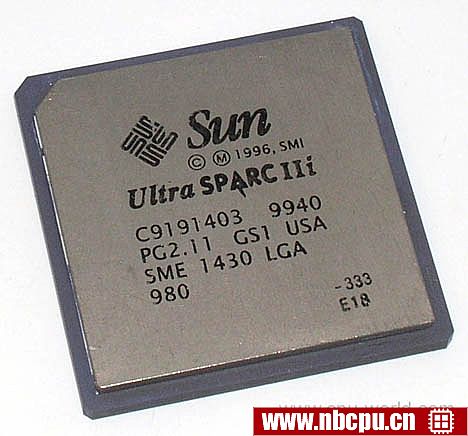

Sun Microsystems UltraSparc IIi 333 MHz - SME1430LGA-333笔记本cpu

一般信息
类型	CPU / Microprocessor
细分市场	Server
系列	Sun Microsystems UltraSparc IIi
CPU 编号	SME1430LGA-333 is an OEM/tray microprocessor
频率	333 MHz
时钟倍频器	4 (UPA64S interface) 4, 5 or 6 (memory interface)
封装	587-land ceramic LGA
接口	LGA587
尺寸	1.48" x 1.48" / 3.75cm x 3.75cm
架构 / 微体系结构
处理器内核	Sapphire Red
制造工艺	0.25 micron 5-layer metal CMOS process
数据位宽	64 bit
浮点单元	Integrated
1级缓存大小	16 KB 2-way set associative code cache 16 KB write-through direct-mapped data cache
多重处理	Uniprocessor
特征	Visual Instruction Set
On-chip peripherals	Memory Controller Unit Level 2 cache controller PCI bus controller I/O memory management unit
电/热参数
Min/Recommended/Max V核	1.84V / 1.9V / 1.96V
V I/O or secondary	3.3V ± 5%
Notes on Sun Microsystems UltraSparc IIi 333 MHz
L2 cache controller supports from 256KB to 2MB of external cache memory Secondary cache operates at 1/2 of the CPU frequency

类别:CPU	制造商:Sun Microsystems
家族:UltraSparc III	产品:Sun Microsystems UltraSparc IIi 333 MHz - SME1430LGA-333
