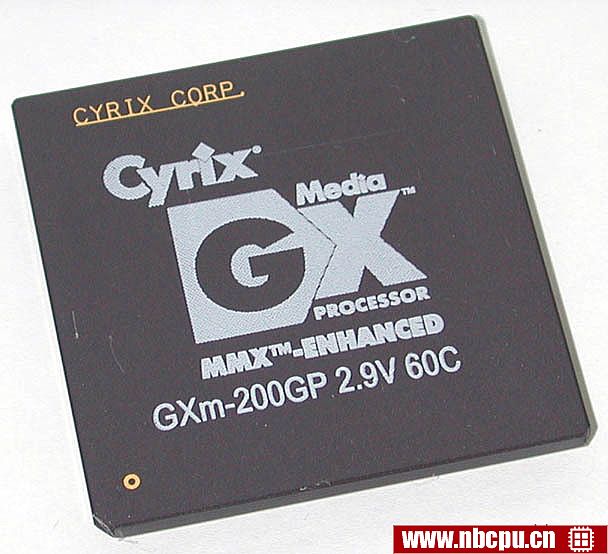

Cyrix MediaGX GXm-200GP 2.9V 60C笔记本cpu

类型	CPU / Microprocessor
系列	Cyrix GXm
CPU 编号	GXm-200GP 2.9V 60C is an OEM/tray microprocessor
频率	200 MHz
总线速度	33 MHz
时钟倍频器	6
封装	320-pin Ceramic Staggered Pin Grid Array 1.952" x 1.952" (4.96 cm x 4.96 cm)
架构 / 微体系结构
制造工艺	0.35 micron 4-layer metal CMOS process
数据位宽	32 bit
浮点单元	Integrated
1级缓存大小	16 KB write-back 4-way set associative unified instruction and data cache
Physical memory	1 GB
特征	MMX instructions
低功耗特性	APM support CPU only suspend Suspend modulation Full 3V suspend
On-chip peripherals	PCI controller Display controller and 2D Graphics accelerator 64-bit synchronous DRAM controller Memory Management Unit Internal Bus Interface Unit
电/热参数
V核	2.9V ± 0.15V
V I/O or secondary	3.3V ± 0.16V
Maximum operating temperature	60°C
Minimum/Typical/Maximum power dissipation	2.03 Watt (Suspend mode) / 5.2 Watt / 8.95 Watt
Notes on Cyrix GXm 200 MHz
Interfaces with Cx5520 or Cx5530 companion chips

类别:CPU	制造商:Cyrix
家族:GXm	产品:Cyrix MediaGX GXm-200GP 2.9V 60C
