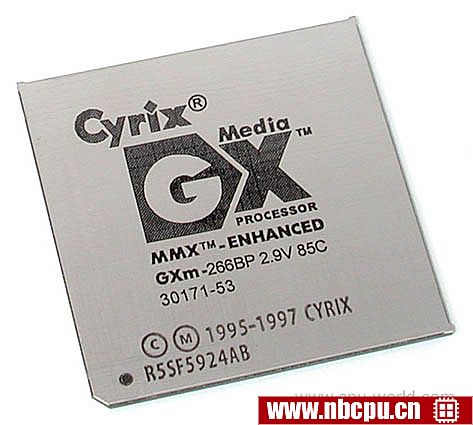

Cyrix MediaGX GXm-266BP 2.9V 85C笔记本cpu

类型	CPU / Microprocessor
系列	Cyrix GXm
CPU 编号	GXm-266BP 2.9V 85C is an OEM/tray microprocessor
频率	266 MHz
总线速度	33 MHz
时钟倍频器	8
封装	352-terminal Ball Grid Array 1.378" x 1.378" (3.5 cm x 3.5 cm)
架构 / 微体系结构
制造工艺	0.35 micron 4-layer metal CMOS process
数据位宽	32 bit
浮点单元	Integrated
1级缓存大小	16 KB write-back 4-way set associative unified instruction and data cache
Physical memory	1 GB
特征	MMX instructions
低功耗特性	APM support CPU only suspend Suspend modulation Full 3V suspend
On-chip peripherals	PCI controller Display controller and 2D Graphics accelerator 64-bit synchronous DRAM controller Memory Management Unit Internal Bus Interface Unit
电/热参数
V核	2.9V ± 0.15V
V I/O or secondary	3.3V ± 0.16V
Maximum operating temperature	85°C
Minimum/Typical/Maximum power dissipation	3.26 Watt (Suspend mode) / 5.87 Watt / 10.7 Watt
Notes on Cyrix GXm 266 MHz
Interfaces with Cx5520 or Cx5530 companion chips

类别:CPU	制造商:Cyrix
家族:GXm	产品:Cyrix MediaGX GXm-266BP 2.9V 85C
