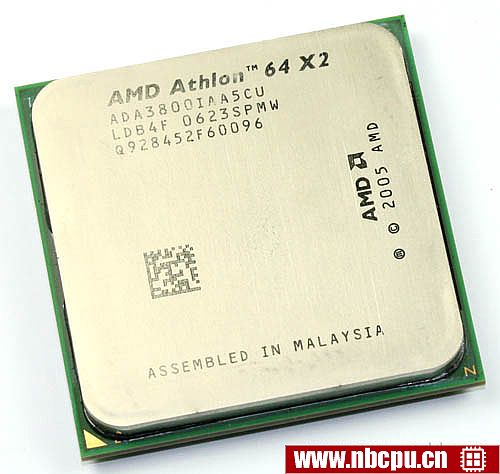

AMD Athlon 64 X2 3800+ - ADA3800IAA5CU (ADA3800CUBOX)笔记本cpu

类型	CPU / Microprocessor
细分市场	Desktop
系列	AMD Athlon 64 X2
型号	3800+
CPU部件号	ADA3800IAA5CU is an OEM/tray microprocessor ADA3800CUBOX is a boxed microprocessor with fan and heatsink
CPU步进	ADB4F CDB4F LDB4F LDBBF LEDBF NDB4F NDBBF
频率	3800+ (rated) 2000 MHz (real)
总线速度	One 1000 MHz 16-bit HyperTransport link (2GT/s)
时钟倍频器	10
封装	940-pin organic micro Pin Grid Array (micro-PGA)
AMD 封装 number	29257
接口	接口 AM2
发布时间	May 23, 2006 ^[1]
架构 / 微体系结构
微体系结构	K8
处理器内核	Windsor
Core stepping	F2
制造工艺	0.09 micron silicon-on-insulator (SOI) technology 164 million transistors
数据位宽	64 bit
The number of cores	2
线程数	2
浮点单元	Integrated
1级缓存大小	2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches
2级缓存大小	2 x 512 KB 16-way set associative exclusive caches
Physical memory	1 TB
Virtual memory	256 TB
多重处理	Uniprocessor
特征	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 AMD64 / AMD 64-bit technology EVP / Enhanced Virus Protection AMD-V / AMD Virtualization technology
低功耗特性	Cool'n'Quiet technology Halt state Stop Grant state
集成外设/组件
集成显卡	None
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR2-800 Maximum memory bandwidth (GB/s): 12.8
Other peripherals	HyperTransport 2.0 technology (1 link)
电/热参数
V核	1.3V / 1.35V
Maximum operating temperature	55°C - 70°C
热设计功耗	89 Watt
Notes on AMD Athlon 64 X2 3800+
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. 热设计功耗 in the minimum P-state is 36.5 Watt [1] - Information is not confirmed
