Texas Instruments TMS7002NL基本资料
类别:MCU 制造商:Texas Instruments
家族:TMS7000 产品:Texas Instruments TMS7002NL
类型 Microcontroller
频率    8 MHz
封装 40-pin plastic DIP
接口 DIP40
架构 / 微体系结构
制造工艺 N-channel silicon-gate MOS technology
数据位宽 8 bit
On-chip peripherals
  • 2 13-bit timers
  • 10-bit timer
  • Serial port
  • 22 bi-directional I/O lines
  • 2 input-only lines
  • 8 output only lines
On-chip RAM 256 bytes
On-chip ROM None
电/热参数
V核    5V ± 10%
最小/最大工作温度    0°C - 70°C
Typical/Maximum power dissipation 0.8 Watt / 1.155 Watt

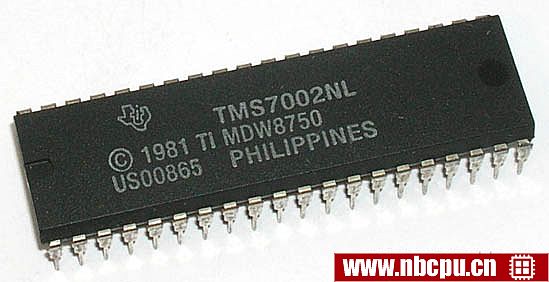

Texas Instruments TMS7002NL图片资料
Texas Instruments TMS7002NL
