Fujitsu MBL8088-P / MBL8088 (plastic)笔记本cpu

Fujitsu MBL8088-P / MBL8088 (plastic)基本资料

类别:CPU	制造商:NEC
家族:8088	产品:Fujitsu MBL8088-C / MBL8088 (ceramic)

类型	CPU / Microprocessor
系列	Fujitsu 8088
CPU部件号	MBL8088 is a 编号 marked on the chip MBL8088-P is an order number
频率	5 MHz
封装	40-pin plastic DIP
接口	DIP40
尺寸	2.06" x 0.54" / 5.23cm x 1.38cm

架构 / 微体系结构

制造工艺	N-channel, depletion load, silicon gate technology
数据位宽	16 bit
Data bus width	8 bit
Physical memory	1 MB

电/热参数

V核	5V ± 10%
最小/最大工作温度	0°C - 70°C
Maximum power dissipation	1.87 Watt

Notes on Fujitsu MBL8088-P

Minimum operating frequency is 2 MHz

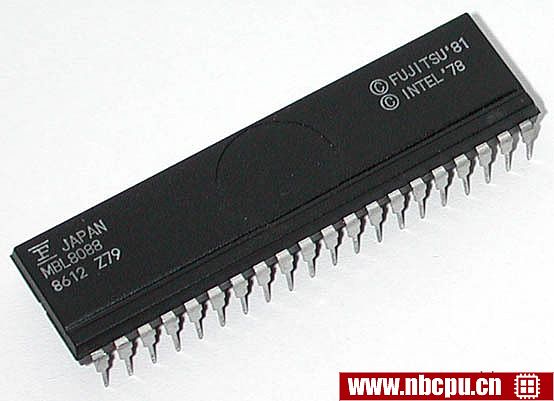

Fujitsu MBL8088-P / MBL8088 (plastic)图片资料

其它cpu Part Number
