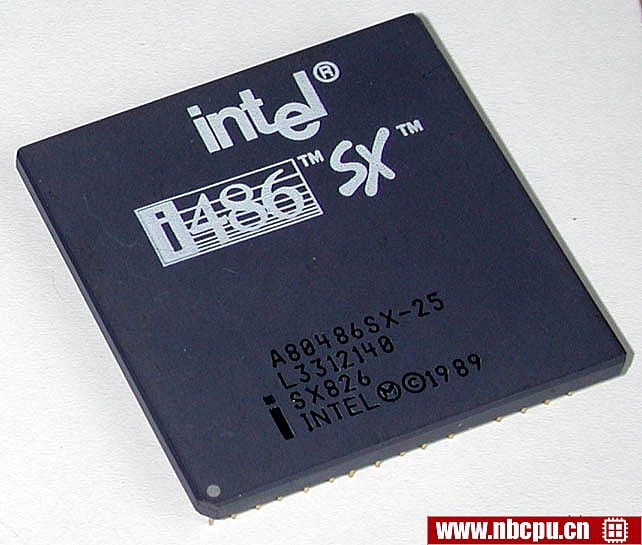

Intel A80486SX-25笔记本cpu

一般信息

类型

CPU / Microprocessor

系列

Intel 80486

CPU 编号

A80486SX-25 is an OEM/tray microprocessor

频率

25 MHz

总线速度

25 MHz

时钟倍频器

封装

168-pin Pin Grid Array
1.75" x 1.75" (4.45 cm x 4.45 cm)

接口

PGA168

发布时间

16-Sep-91

Upgrade options

Use Intel ODP486SX-25, ODPR486SX-25, SX2ODP50, SX2ODPR50, DX2ODP50 or DX2ODP50 to upgrade to 50 MHz
Use Intel DX4ODP75 or DX4ODPR75 to upgrade to 75 MHz
Use Intel PODP5V63 to upgrade to Pentium 63 MHz
See 80486 upgrade matrix for more information.

S规格号

部件号	ES/QS处理器		生产处理器
	Q0152	Q0186	SX411	SX468	SX514	SX679	SX693	SX719
A80486SX-25	+	+	+	+	+	+	+	+

部件号	生产处理器
	SX790	SX798	SX826	SX838	SX846	SX903	SX930
A80486SX-25	+	+	+	+	+	+	+

架构 / 微体系结构

微体系结构

i486

CPUIDs

420 (SX411, SX468)
422 (SX679, SX826)
423 (SX798, SX903)
42A (SX790)

数据位宽

32 bit

浮点单元

80487SX co-processor

1级缓存大小

8 KB 4-way set associative unified code and data cache

Physical memory

4 GB

Virtual memory

64 TB

低功耗特性

Stop Clock state (SL enhanced version only)
Stop Grant state (SL enhanced version only)
Stop Clock Snoop state (SL enhanced version only)
Auto Halt state (SL enhanced version only)
Upgrade Power Down mode (SL enhanced version only)

On-chip peripherals

Memory management unit

电/热参数

V核

5V ± 5%

最小/最大工作温度

0°C - 85°C

Minimum/Typical/Maximum power dissipation

0.33 Watt (Stop Grant mode) / 1.89 Watt / 2.94 Watt

Notes on Intel 25 MHz

Newer versions of the processor incorporate SL technology.
