Motorola MC68705R3L基本资料
类别:MCU 制造商:Hitachi
家族:680x 产品:Motorola XC6801L1
一般信息
类型 Microcontroller
系列 Motorola 680x
MCU 编号
  • MC68705R3L is an OEM/tray microcontroller
频率    1 MHz
封装 40-pin side-brazed ceramic DIP
接口 DIP40
架构 / 微体系结构
数据位宽 8 bit
On-chip peripherals
  • 8-bit timer with 7-bit prescaler
  • clock oscillator
  • 24 I/O lines
  • 4-channel Analog-to-Digital converter
On-chip RAM 112
On-chip ROM 3776 (EPROM)
电/热参数
V核    5.25V ± 0.5V
最小/最大工作温度    0°C - 70°C
Typical/Maximum power dissipation 0.58 Watt / 0.8 Watt

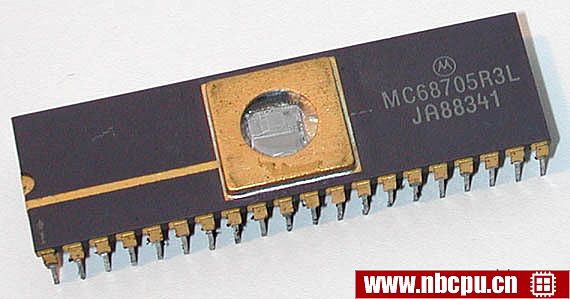

Motorola MC68705R3L图片资料
Motorola MC68705R3L
