AMI S6802 (purple-black-tin)笔记本cpu

AMI S6802 (purple-black-tin)基本资料

类别:MCU	制造商:Hitachi
家族:680x	产品:AMI S6802 (purple-black-tin)

一般信息
类型	Microcontroller
系列	AMI 680x
MCU 编号	S6802 is an OEM/tray microcontroller
频率	1 MHz
封装	40-pin side-brazed ceramic DIP
接口	DIP40
架构 / 微体系结构
数据位宽	8 bit
Physical memory	64 KB
低功耗特性	Standby mode
On-chip peripherals	On-chip clock circuit
On-chip RAM	128 bytes incuding 32 standby bytes
On-chip ROM	0
电/热参数
V核	5V ± 5%
最小/最大工作温度	0°C - 70°C
Minimum/Typical/Maximum power dissipation	0.032 Watt (Standby mode) / 0.6 Watt / 1.2 Watt
Notes on AMI S6802
Software-compatible with 6800

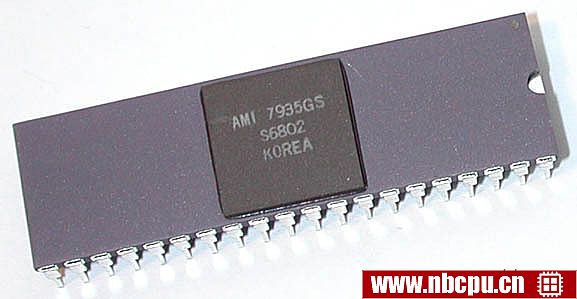

AMI S6802 (purple-black-tin)图片资料
