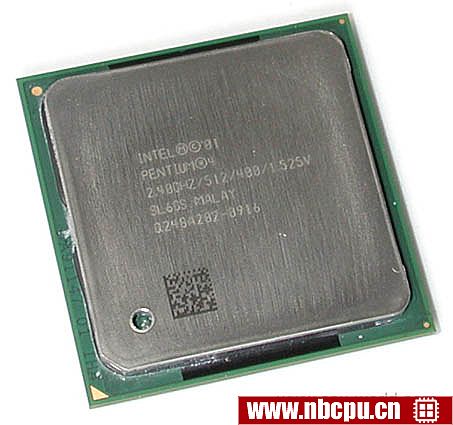

Intel Pentium 4 2.4 GHz - RK80532PC056512 / BX80532PC2400D笔记本cpu

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium 4

CPU部件号

RK80532PE056512 is an OEM/tray microprocessor
BX80532PE2400D is a boxed microprocessor

频率

2400 MHz

总线速度

533 MHz

时钟倍频器

封装

478-pin Flip-Chip Pin Grid Array (FC-PGA2)

接口

接口 478 / mPGA478B

发布时间

May 6, 2002

S规格号

	ES/QS处理器	生产处理器
部件号	QMU6	SL67Z	SL684	SL6D7	SL6DV	SL6EF	SL6EU	SL6PC
BX80532PE2400D		+	+	+	+	+	+	+
RK80532PE056512	+	+		+	+			+

	生产处理器
部件号	SL6Q8	SL6RZ	SL6SH
BX80532PE2400D	+	+	+
RK80532PE056512		+	+

架构 / 微体系结构

微体系结构

Netburst

处理器内核

Northwood

核心步进

B0 (SL67Z, SL684, SL6D7, SL6EU)
C1 (QMU6, SL6DV, SL6EF, SL6RZ, SL6SH)
D1 (SL6PC, SL6Q8)

CPUIDs

F24 (SL67Z, SL684, SL6D7, SL6EU)
F27 (QMU6, SL6DV, SL6EF, SL6RZ, SL6SH)
F29 (SL6PC, SL6Q8)

制造工艺

0.13 micron CMOS technology
55 million transistors

数据位宽

32 bit

The number of cores

线程数

浮点单元

Integrated

1级缓存大小

Approximately 12K micro-ops execution trace cache
8 KB data cache

2级缓存大小

512 KB 8-way associative full-speed on-die cache

特征

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2

低功耗特性

System Management Mode
Auto-HALT mode
Stop Grant mode
Sleep mode

集成外设/组件

集成显卡

None

电/热参数

V核

1.475V - 1.525V

最小/最大工作温度

5°C - 70°C (1.5V核)
5°C - 71°C (all others)

Maximum power dissipation

69.97 Watt (1.5V核)
72.5 Watt (1.525V核)

热设计功耗

57.8 Watt (1.5V)
59.8 Watt (1.525V)

Notes on Intel Pentium 4 2.4 GHz

Bus frequency is 133 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 533 MHz
To distinguish this processor from Pentium 4 2.4 GHz with 400 MHz FSB, this CPU is often referred to as Pentium 4 2.4B GHz
