Intel Mobile Pentium 133 - A80502133基本资料
类别:CPU 制造商:Intel
家族:Pentium 产品:Intel Mobile Pentium 75 - A8050275
类型 CPU / Microprocessor
细分市场 Mobile
系列 Intel Mobile Pentium
CPU 编号
  • A80502133 (mobile) is an OEM/tray microprocessor
频率    133 MHz
总线速度    66 MHz
时钟倍频器    2
封装 296-pin Ceramic Staggered Pin Grid Array (SPGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)
接口s 接口 5
接口 7
ICOMP 2 index 111
Upgrade options Not supported
S规格号
  ES/QS处理器 生产处理器
部件号 Q0882 SY028
A80502133 + +
架构 / 微体系结构
微体系结构 P5
Core stepping    mcC0 (Q0882, SY028)
CPUID 52C (Q0882, SY028)
制造工艺 0.35 micron low-voltage BiCMOS silicon technology
3.3 million transistors
数据位宽 32 bit
Data bus width 64 bit
浮点单元 Integrated
1级缓存大小    8 KB 2-way set associative code cache
8 KB 2-way set associative write-back data cache
多重处理 Not supported
低功耗特性
  • System Management Mode
  • Clock Control
  • SL power-management features
On-chip peripherals Memory Management Unit
电/热参数
Min/Recommended/Max V核 2.735V / 2.9V / 3.065V
3.1V
Min/Recommended/Max V I/O or secondary 3.135V / 3.3V / 3.465V
最小/最大工作温度    0°C - 85°C
Minimum/Typical/Maximum power dissipation 1.3 Watt (Stop Grant mode) / 3 Watt - 4 Watt / 9.74 Watt
热设计功耗    7.9 Watt
Notes on Intel Mobile Pentium 133 MHz
  • Minimum bus frequency is 33 MHz
  • Please use processor's S-Spec number to determine exact core voltage
  • Power dissipation and thermal design power are provided for 2.9V核 voltage
  • There is a desktop Pentium processor with the same 编号. Please use processor specification number to distinguish between desktop and mobile processors
  • Processor is compatible with dual power plane socket 5, and is not compatible with desktop socket 5

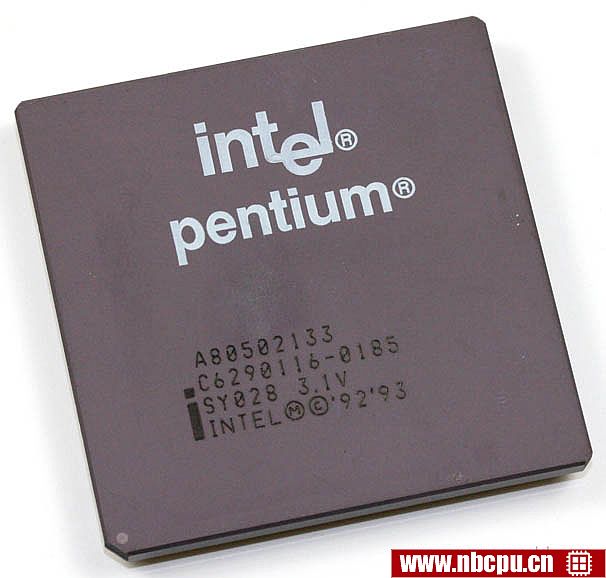

Intel Mobile Pentium 133 - A80502133图片资料
Intel Mobile Pentium 133 - A80502133
