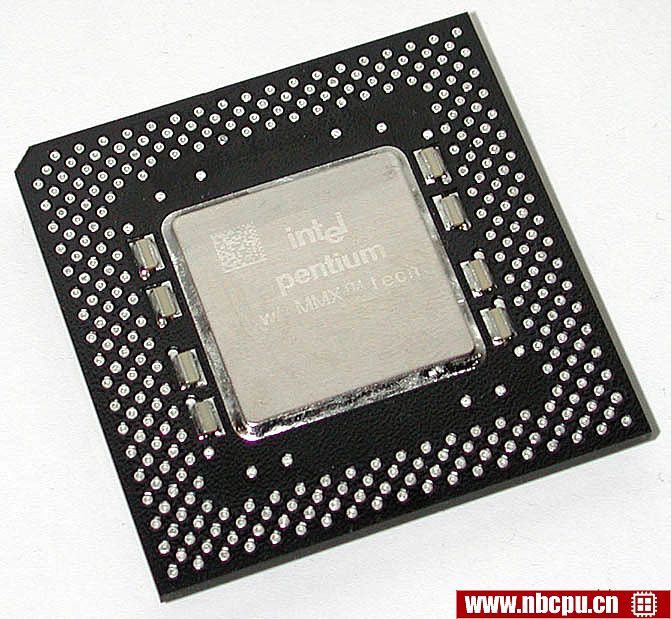

Intel Pentium MMX 233 - FV80503233笔记本cpu

类型

System-on-a-Chip

细分市场

Desktop

系列

Intel Pentium (Bay Trail-D)

型号

J2850

SoC 编号

FH8065301455104 is an OEM/tray SoC

频率

2410 MHz

Low power frequency

1333 MHz

封装

1170-ball micro-FCBGA

接口

BGA1170

尺寸

1.06" x 0.98" / 2.7cm x 2.5cm

发布时间

September 11, 2013

End-of-Life date

Last order date for tray processors is February 21, 2014
Last shipment date for tray processors is April 25, 2014

指导价格

$94

S规格号

	生产处理器
部件号	SR1LM
FH8065301455104	+

架构 / 微体系结构

微体系结构

Silvermont

Platform

Bay Trail-D

处理器内核

Bay Trail-D

Core stepping

B2 (SR1LM)

CPUID

30673 (SR1LM)

制造工艺

0.022 micron

数据位宽

64 bit

The number of cores

线程数

浮点单元

Integrated

1级缓存大小

4 x 32 KB 8-way set associative instruction caches
4 x 24 KB 6-way set associative data caches

2级缓存大小

2 x 1 MB 16-way set associative shared caches

Physical memory

8 GB

多重处理

Not supported

特征

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
EM64T / Extended Memory 64 technology / Intel 64
NX / XD / Execute disable bit
VT-x / Virtualization technology
VT-d / Virtualization for directed I/O

低功耗特性

Core C1/C1E and C6 states
封装 C1/C1E and C6 states
Enhanced SpeedStep technology

集成外设/组件

集成显卡

GPU 类型: HD (Gen 7)
Base frequency (MHz): 688
Maximum frequency (MHz): 792
The number of supported displays: 2

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1333, DDR3L-1333
DIMMs per channel: 1
Maximum memory bandwidth (GB/s): 21.3

Other peripherals

PCI Express 2.0 interface (4 lanes)
SATA 2.0 interface (2 ports)
USB xHCI controller
High Definition Audio
eMMC / SDIO / SD controller
2 high-speed UART interfaces
Trusted Execution Engine
Legacy I/O

电/热参数

Maximum operating temperature

100°C

热设计功耗

10 Watt

Notes on Intel Pentium J2850

According to other sources the maximum graphics frequency is 854 MHz
The CPU is compatible with DirectX 11.0, OpenGL 4.0 and OpenCL 1.2 APIs.
