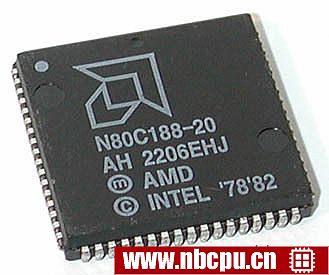

AMD N80C188-20笔记本cpu

一般信息
类型	CPU / Microprocessor
系列	AMD 80188
CPU 编号	N80C188-20 is an OEM/tray microprocessor
频率	20 MHz
封装	68-pin plastic Leaded Chip Carrier (PLCC)
接口	PLCC68
尺寸	0.95" x 0.95" / 2.42cm x 2.42cm
架构 / 微体系结构
制造工艺	CMOS
数据位宽	16 bit
Data bus width	8 bit
浮点单元	None
Physical memory	1 MB
低功耗特性	Power-save mode
On-chip peripherals	Clock generator Two independent high-speed DMA channels Programmable interrupt controller Three programmable 16-bit timers Programmable memory and peripheral chip-select logic Programmable wait state generator Local bus controller Dynamic RAM refresh control unit
电/热参数
V核	5V ± 10%
最小/最大工作温度	0°C - 70°C
Maximum power dissipation	0.55 Watt
Notes on AMD N80C188-20
Pin-compatible with NMOS 80188 (with the exception of 8087 operations) Object-code compatible with 8086 and 8088
