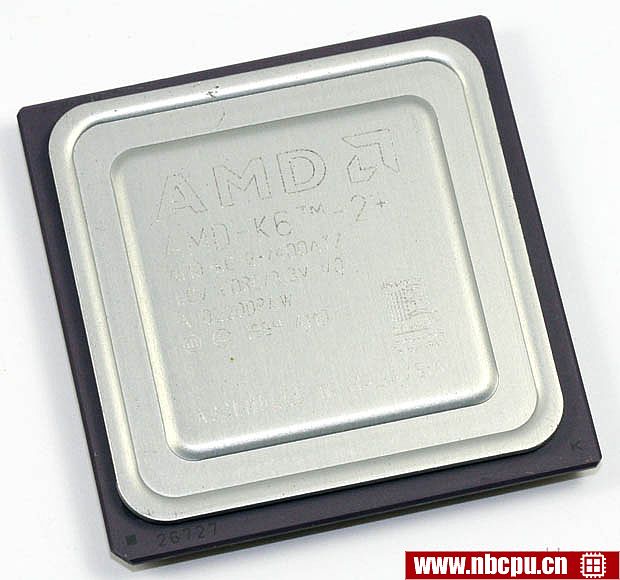

AMD Embedded K6-2E+ 400 MHz - AMD-K6-2+/400ATZ笔记本cpu

类型	CPU / Microprocessor
细分市场	Embedded
系列	AMD Embedded K6-2E+
CPU 编号	AMD-K6-2+/400ATZ is an OEM/tray microprocessor
频率	400 MHz
总线速度	66 MHz or 100 MHz
时钟倍频器	6 (66 MHz bus) 4 (100 MHz bus)
封装	321-pin ceramic staggered PGA 1.95" x 1.95" (4.95 cm x 4.95 cm)
接口s	接口 7 (66 MHz bus) Super 7 (100 MHz bus)
发布时间	Sep 25, 2000
指导价格	$76
架构 / 微体系结构
微体系结构	K6
制造工艺	0.18 micron
数据位宽	32 bit
浮点单元	Integrated
1级缓存大小	32 KB 2-way set associative instruction cache with additional 20 KB pre-decode cache 32 KB 2-way set associative writeback data cache
2级缓存大小	128 KB full-speed 4-way set associative cache
特征	MMX instructions 3DNow! with 5 extra instructions
低功耗特性	System Management Mode Halt state Stop-Grant state Stop Clock state Enhanced Power Management Stop Grant state PowerNow!
电/热参数
V核	1.6V ± 0.1V
Min/Recommended/Max V I/O or secondary	3.135V / 3.3V / 3.6V
最小/最大工作温度	0°C - 85°C
Maximum power dissipation	12.8 Watt
热设计功耗	9.5 Watt
