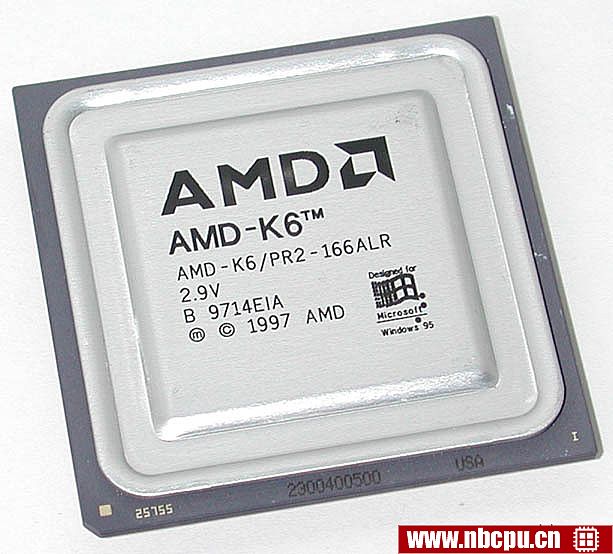

AMD K6 166 - AMD-K6/PR2-166ALR笔记本cpu

类型	CPU / Microprocessor
细分市场	Desktop
系列	AMD K6
CPU 编号	AMD-K6/PR2-166ALR is an OEM/tray microprocessor
频率	166 MHz
总线速度	66 MHz
时钟倍频器	2.5
封装	321-pin ceramic staggered PGA 1.95" x 1.95" (4.95 cm x 4.95 cm)
AMD 封装 number	25755
接口	接口 7
发布时间	2-Apr-97
指导价格	$244
架构 / 微体系结构
微体系结构	K6
处理器内核	Model 6
CPUID	561
制造工艺	0.35 micron 8.8 million transistors
数据位宽	32 bit
浮点单元	Integrated
1级缓存大小	32 KB code with pre-decode cache 32 KB writeback data
Physical memory	4 GB
特征	MMX instructions
低功耗特性	Halt state Stop Grant state Stop Grant Inquire state Stop Clock state
电/热参数
V核	2.9V ± 0.1V
Min/Recommended/Max V I/O or secondary	3.135V / 3.3V / 3.6V
最小/最大工作温度	0°C - 70°C
Minimum/Typical/Maximum power dissipation	1.6 Watt (Stop Clock mode) / 10.3 Watt / 17.2 Watt
Notes on AMD K6 166 MHz
Early K6 processors had PR2 (Pentium II) rating in their 编号. Later this rating was dropped from the 编号 because processor frequency was the same as the PR2 rating.
