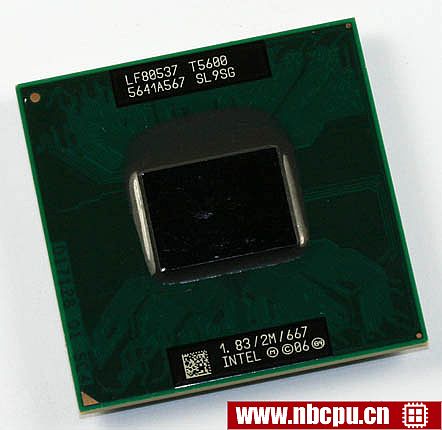

Intel Core 2 Duo Mobile T5600 LF80537GF0342M (BX80537T5600)笔记本cpu

类型

CPU / Microprocessor

细分市场

Mobile

系列

Intel Core 2 Duo Mobile

型号

T5600

CPU部件号

LF80537GF0342M is an OEM/tray microprocessor
BX80537T5600 is a boxed microprocessor without fan and heatsink

频率

1833 MHz

总线速度

667 MHz

时钟倍频器

封装

478-pin micro-FCPGA
1.38" x 1.38" (3.5 cm x 3.5 cm)

接口

接口 M / mPGA478MT

发布时间

Aug 28, 2006

指导价格

$241

S规格号

	ES/QS处理器					生产处理器
部件号	QLED	QOLD	QTBS	QUFU	QWNS	SL9SG	SL9U3
BX80537T5600						+
LF80537GF0342M	+	+	+	+	+	+	+

架构 / 微体系结构

微体系结构

Core

Platform

Napa Refresh

处理器内核

Merom

核心步进

B2 (QTBS, SL9SG)
L2 (QUFU, SL9U3)
M0 (QWNS)

CPUIDs

6F2 (QUFU, SL9U3)
6F6 (QTBS, SL9SG)
6FD (QWNS)

制造工艺

0.065 micron

数据位宽

64 bit

The number of cores

线程数

浮点单元

Integrated

1级缓存大小

2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative write-back data caches

2级缓存大小

Shared 2 MB 8-way set associative cache

多重处理

Uniprocessor

特征

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
EM64T / Extended Memory 64 technology / Intel 64
NX / XD / Execute disable bit
VT / Virtualization technology

低功耗特性

Stop Grant mode
Sleep mode
Deep Sleep mode
Deeper Sleep mode
Enhanced Deeper Sleep mode
Dynamic Cache sizing
Enhanced SpeedStep technology

集成外设/组件

集成显卡

None

电/热参数

V核

1.0375V - 1.3V

最小/最大工作温度

0°C - 100°C

Maximum power dissipation

53.3 Watt

热设计功耗

34 Watt

Notes on Intel Core 2 Duo T5600

Bus frequency is 166 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 667 MHz

类别:CPU	制造商:Intel
家族:Core 2 Duo Mobile	产品:Intel Core 2 Duo Mobile T5600 LF80537GF0342M (BX80537T5600)
