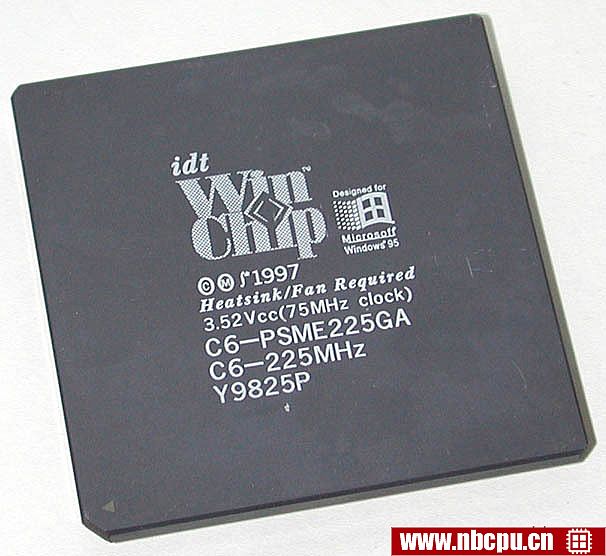

IDT C6-PSME225GA笔记本cpu

类型	CPU / Microprocessor
频率	225 MHz
总线速度	75 MHz
时钟倍频器	3
封装	296-pin Staggered Ceramic Pin Grid Array, 1.95" x 1.95" (4.95 cm x 4.95 cm)
接口	接口 7
发布时间	Nov 1997 ^[1]
架构 / 微体系结构
制造工艺	0.35 micron 4-layer metal CMOS technology 5.4 million transistors
模具尺寸	88mm²
数据位宽	32 bit
浮点单元	Integrated
1级缓存大小	32 KB 2-way set associative code cache 32 KB 2-way set associative data cache
Physical memory	4 GB
Pipeline	5-stage with additional instruction translation stage
多重处理	Not supported
特征	MMX instructions
低功耗特性	STOP CLOCK state STOP GRANT state STOP CLOCK SNOOP state AUTOHALT state Dynamic power management - MMX and FPU units, and some other circuits are powered down when not in use
电/热参数
Min/Recommended/Max V核	3.45V / 3.52V / 3.6V
最小/最大工作温度	0°C - 60°C
最小/最大功耗	3.5 Watt (Stop Clock mode) / 14.8 Watt
Notes on IDT C6-PSME225GA
[1] - Information is not confirmed

类别:CPU	制造商:IDT
家族:WinChip C6	产品:IDT C6-PSME225GA
